Universal Programmable 2-wire transmitter

IPAQ C330
Zesta Universal Programmable 2-wire transmitter
Zesta Universal Programmable 2-wire transmitter

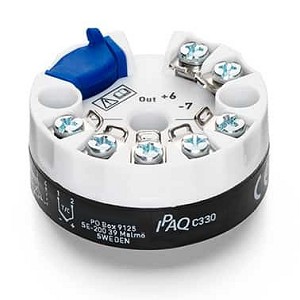

IPAQ C330 is a modern, isolated, universal temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A temperature transmitter compatible with both Pt100-sensors and thermocouples offers high flexibility and reduces the number of installed product variants.

The robust design offers high vibration resistance and noise immunity and is therefore a guarantee for reliable and accurate operation also under the most demanding conditions. IPAQ C330 is available with ATEX and IECEx certifications, making it a safe choice for a wide range of applications.

Back to In-Head Transmitters
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Product Specifications

Type Head-mounted
Input RTD, TC, mV, ohm
Input RTD Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocouple Type B, C, D, E, J, K, N, R, S, T
Type of transmitter Digital
Output 4-20 mA
Galvanic isolation 1500 VAC
Measuring channels 1 channel
Sensor connection 2-, 3-, 4-wire connection
Power supply IPAQ-C330: 8 to 36 VDC
IPAQ-C330X: 8 to 30 VDC
Approvals ATEX, IECEx
Typical accuracy 0,08% of span
Accuracy over time Max. drift ±0,02% of span/year
Vibration IEC 60068-2-6, 10 g
Runtime counter Hour counter for elapsed operational time
Simulated output Fixed current ouput during a maximum time
of 15 min

Resources

Literature

IPAQ C330 Datasheet
