Adjustable Spring Thermocouples
Adjustable Spring Thermocouples
Styles 10 & 11
share

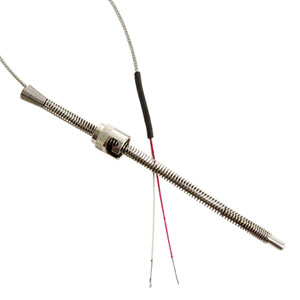

Adjustable spring style thermocouple fits a large range of hole depths. Bends to any angle, eliminating the requirement to stock numerous styles.
Back to General Purpose
Customize this product
Buy now
Features
Specifications
Ordering information
Resources
Applications
Product Features
Stainless steel braid or hose protection
J, K, T and E calibrations
Grounded, ungrounded and exposed junctions
Flat and drill point
Epoxy sealed cold ends
Adjustable depths
Flexible extensions
Washers, nozzles and clamp bands
Custom diameters
PFA coated and stainless steel sheaths
Straight, 45° bend or 90° bend
Locking bayonet caps in standard, 12 mm and 15 mm
Product Specifications
Calibration:
Type J, K, T, E
Junction:
Grounded
Ungrounded
Tip Style:
Round tip
Flat tip
Drill point
Lead Length and Material:
Fiberglass (482°C / 900°F)
Fiberglass with SS overbraid (482°C / 900°F)
Polymide (315°C / 600°F)
Polymide with SS overbraid (315°C / 600°F)
FEP (204°C / 400°F)
FEP with SS overbraid (204°C / 400°F)
PFA (260°C / 500°F)
PFA with SS overbraid (260°C / 500°F)
Termination:
2.5" split leads
2.5" split leads with #6 spade lugs
2.5" split leads with #6 spade lugs and BX connector
Male plug connector
Female jack connector
Mini male plug connector
Mini female jack connector
Special Options:
Dual element
Double slotted cap 12mm or 15mm
Special termination
special spring length
Resources
Literature
Thermocouple Adjustable Spring Datasheet
Applications
Food processing equipment
De-icing
Plating baths
Industrial processing
Medical equipment
Pipe tracing control
Industrial heat treating
Packaging equipment
Liquid temperature measurement
Refrigerator temperature control
Oven temperature control
