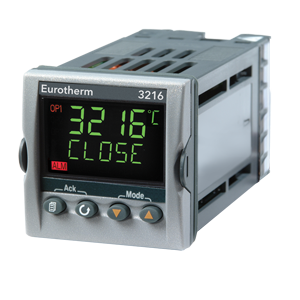

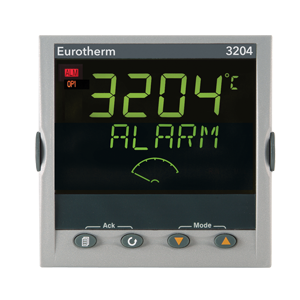

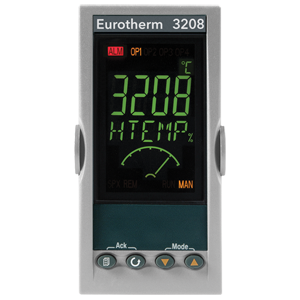

3200 Temperature/ Process Controller

3204, 3216, 3208, 32h8
3200 Temperature/ Process Controller
The innovative range of 3200 series controller offers precision control of temperature and other process variables together with a host of advanced features not normally found in this class of controller.
Back to Single Loop Controllers

Description

  • QuickStart set-up enabling ‘out of the box’ operation
  • Expert configuration via PC wizard with online help
  • Quick and easy commissioning – no need for expert knowledge
  • Clear information of process with scrolling, custom messages
  • Custom alarm messages for easy understanding
  • Recipe selection from operator interface
  • Internal timer and setpoint programming
  • Instant indication of heater faults with integral ammeter
  • Remote setpoint – solution for multi-zone applications


The emphasis is on simplicity and ease of use.  A simple ‘QuickStart’ code can be used to configure all the functions essential for controlling your process.  This includes input sensor type, measurement range, control options and alarms – making ‘Out of the Box’ operation truly achievable.  If you prefer, you can specify what you need at point of order and we will ship the unit preconfigured to your requirements.

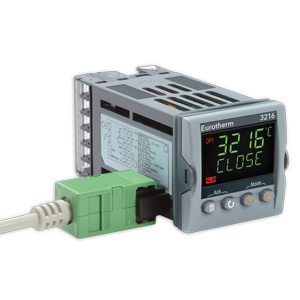

In operator mode every parameter has a scrolling text message describing its function and is available in English, German, French, Spanish or Italian.  More advanced features are configured using Eurotherm iTools, a PC based configuration wizard which is easy to use and an instructive guide to all the functions in the controller.

Ideal for:

  • Plastics – extrusion
  • Heat treatment
  • Hot runner
  • Thermal forming
  • Ovens & chillers
  • Stress relieving

Features:

  • 8 Segment programmer
  • Heater failure detection
  • Current monitoring
  • Internal timer
  • Scrolling text messages
  • Recipes
  • Modbus comms
  • Modbus SP retransmission
  • Analog retransmission
  • Remote setpoint
  • Help text

Related Terms: 3000 Series

Product Specifications

Input Type:
CT, mA, mV, RTD, TC
PV Accuracy:
<0.25%
IP Rating:
IP65, NEMA 12 / NEMA 4X (3216 Only)
Display Type:
Main: 4 digits Lower: 5 character starburst (3216/08/04) 9 character starburst (32h8)
Control Types:
On/Off, PID, VP
Alarm Types:
Dev, Event, Heater fail, Hi, Lo, Sensor Break
Supply Voltage:
24V dc/ac, 85-264V ac
SP Programmer:
4 Ramp + 4 Dwell
Real Time Clock:
Safety-approvals:
EN14597 TR
Special Features:
Recipes, Text Messaging
Analogue IP/OP In:
2
Analogue IP/OP Out:
3
Digital IP/OP In:
3
Digital IP/OP Out:
4
Digital Comms:
Modbus
Maths Equation:
None
Combinational Logic:
None
Timers/Counters/Totals:
None
PC Configuration:
Wizard
