FEP Insulated and Shielded Thermocouple and Extension Wire

Series 509
Zesta Thermocouple Wire Series 509
Zesta Thermocouple Wire Series 509
The SERIES 509 was developed specially for use with microprocessor-based systems.

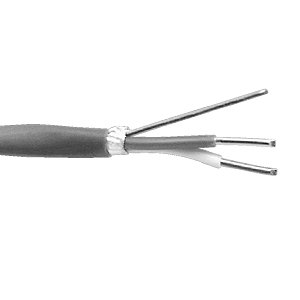

The conductors are insulated with color coded FEP. They are then twisted with a copper drain wire. An aluminized polyester tape is wrapped around the conductors and
drain wire and then FEP is applied.

The finished construction can withstand temperatures in excess of 400°F (204°C). Twisted conductors minimize electromagnetic interference (EMI) and the shield tape eliminates most problems associated with AC “noise” in the sensing circuit.


Watlow: Your Heat Solutions Resource Brochure (EN)
Watlow: Vos Solutions de Chauffage Brochure (FR)
Back to Thermocouple Extension Wire

Product Features

Performance Capabilities
  • Continuous temperature rating: 400°F (204°C)
  • Flexible FEP plastic insulation
  • Twisted and shielded construction to reduce electrical noise interference
  • Available with an optional metallic overbraid for additional abrasion resistance

Specifications

Insulation:
Flexible FEP plastic
Continuous use temperature:
400°F (204°C)
Single use temperature:
500°F (260°C)
Resistance properties:
  • Moisture: Excellent
  • Chemical: Excellent
  • Abrasion: Excellent

Applications

  • General use extension wire
