Digital 2-wire transmitter for thermocouple wireless communication

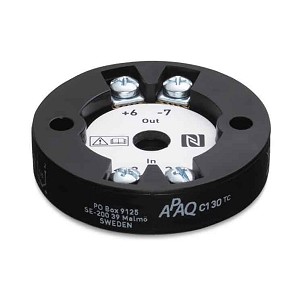

APAQ C130-TC
Zesta Universal Programmable 2-wire transmitter
Zesta Universal Programmable 2-wire transmitter

The APAQ C130TC is a modern transmitter with high reliability and great performance. External influences such as ambient temperature, vibration, moisture and EMC interference have minimal influence on the measurement result, thanks to the robust design.

What characterizes APAQ C130TC is simplicity. You can easily configure the transmitters wirelessly via NFCTM with your smartphone or tablet. There is no need for expensive configuration tools or fixed workstations for transmitter configuration.

Back to In-Head Transmitters
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Product Specifications

Type Head mounted
Input Thermocouple: B, E, J, K, N, R, S and T
Type of transmitter Digital
Output 4-20 mA
Measuring range Type J: -210…+1200 °C / -346…+2192 °F
Type K, N: -270…+1300 °C / -454…+2372 °F
Type R, S: -50…+1750 °C / -58…+3182 °F
Type B,E, T: See data sheet
Sensor error NAMUR NE43
Adjustments – Zero point Any value within range limits
Adjustments – Minimum span 20 °C / 36 °F
Ambient temperature –40…+85 °C / -40…+185 °F
Humidity 0…98% RH (non-condensing)
Vibration IEC 60068-2-6,10 g
EMC EN 61326-1 and EN 61326-2-3
Isolation Unisolated
Power supply 6…32 VDC
Long-term stability Max. drift ±0,05 % of span/year
Typical accuracy Type E, J, K, N: ±1 K or ±0,2 % of span
Type B, R, S, T: ±2 K or ±0,2 % of span
Adjustable filtering level 0,4 to 26 s
Wireless communication NFCTM

Resources

Literature

APAQ C130 TC Datasheet
