Digital 2-wire transmitter for Pt100 and Pt1000 with wireless communication

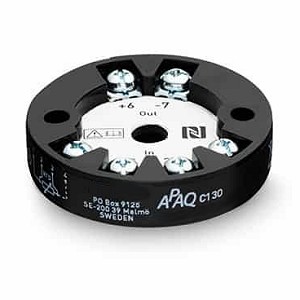

APAQ C130-RTD
Zesta Universal Programmable 2-wire transmitter
Zesta Universal Programmable 2-wire transmitter

The APAQ C130-RTD is a modern transmitter with high reliability and great performance. External influences such as ambient temperature, vibration, moisture and EMC interference have minimal influence on the measurement result, thanks to the robust design.

What characterizes APAQ C130 is simplicity. You can easily configure the transmitters wirelessly via NFC with your smartphone or tablet. There is no need for expensive configuration tools or fixed workstations for transmitter configuration.

Back to In-Head Transmitters

Product Specifications

Type Head mounted
Input Pt100, Pt1000
Type of transmitter Digital
Output 4-20 mA
Measuring range –200…+850 °C / -328…+1562 °F
Sensor error NAMUR NE43
Adjustments – Zero point Any value within range limits
Adjustments – Minimum span 20 °C / 36 °F
Ambient temperature –40…+85 °C / -40…+185 °F
Humidity 0…98% RH (non-condensing)
Vibration IEC 60068-2-6,10 g
EMC EN 61326-1 and EN 61326-2-3
Isolation Unisolated
Power supply 6…32 VDC
Long-term stability Max. drift ±0,05 % of span/year
Typical accuracy Max. ±0,15 K or ±0,15 % of span
Adjustable filtering level 0,4 to 26 s
Wireless communication
NFC®
