Universal 2-wire transmitter with wireless communication

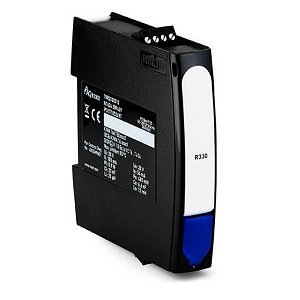

IPAQ R330
Zesta Universal Programmable 2-wire transmitter
Zesta Universal Programmable 2-wire transmitter

IPAQ R330 is a modern temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors to offer high flexibility and reduce the number of installed product variants. IPAQ R330 is available with ATEX, IECEx and cFMus certifications, making it a safe choice for a wide range of applications.

IPAQ R330 supports wireless communication via NFC® (Near- field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter through a smartphone or a tablet.

Back to DIN Rail Mount Transmitters
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Product Specifications

Type Rail-mounted
Input RTD, TC, mV, ohm
Input RTD Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocouple Type B, C, D, E, J, K, N, R, S, T
Type of transmitter Digital
Output 4-20 mA
Galvanic isolation 1500 VAC
Measuring channels 1 channel
Sensor connection 2-, 3-, 4-wire connection
Power supply IPAQ-R330: 8 to 36 VDC
IPAQ-R330X: 8 to 30 VDC
Approvals ATEX, IECEx, FM
Typical accuracy 0,08% of span
Accuracy over time Max. drift ±0,02% of span/year
Vibration IEC 60068-2-6, 5 g
Runtime counter Hour counter for elapsed operational time
Simulated output Fixed current ouput during a maximum time
of 15 min
Configuration ConSoft or INOR Connect
Wireless communication NFC® and Bluetooth® *

Resources

Literature

IPAQ R330 Datasheet
