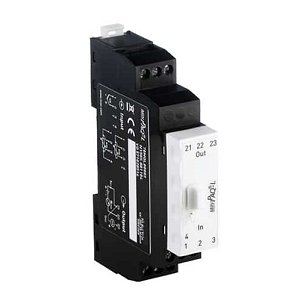

Basic Programmable 2-wire Transmitter

MinIPAQ-L
Zesta Universal Programmable 2-wire transmitter
Zesta Universal Programmable 2-wire transmitter

MINIPAQ-L is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. Configuration is made in seconds with the user friendly Windows software. No external power supply required for configuration.

MINIPAQ-L is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types.
Useful error correction functions improve the accuracy.

Back to DIN Rail Mount Transmitters
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Features

  • Accepts RTD in 3- and 4-wire connection and 11 T/C types
  • Temperature linear output
  • Sensor error and system (sensor/transmitter) error correction for
    highest total accuracy
  • Configuration without external power
  • Easy-to-use Windows configuration software
  • NAMUR compliant
  • Test output without breaking the loop
  • USB communication
  • Withstands vibrations up to 10 g

Product Specifications

Type Rail-mounted
Input RTD; Thermocouple
Input RTD Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input Thermocouple Type B, C, E, J, K, L, N, R, S, T, U
Type Of Transmitter Digital
Output 4-20 mA
Isolation Unisolated
Measuring channels 1 channel
Sensor connection 3-, 4-wire connection
Power supply 8 to 32 VDC
Typical accuracy 0.15% of span

Resources

Literature

MinIPAQ-L Datasheet
