Multicoil Tubular Heaters


Multicoil Tubular Heaters

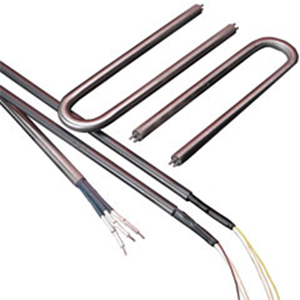

The tubular element with multiple coils and/or thermocouples inside one sheath from Watlow® answers the need for a versatile, innovative tubular heater. Watlow’s patented method of packaging a thermocouple inside of a heater with one or more resistance coils, gives the ability to sense a heaters’ internal temperature accurately, every time.

Moreover, this is the first tubular heater in the industry with three-phase capability. The three coil, three-phase heater will offer a compact package solution while delivering the full power required in a compact heater package. Previously three separate heaters would have been required to do the same job; therefore Watlow’s MULTICOIL™ heater capabilities save money.


Watlow: Your Heat Solutions Resource Brochure (EN)
Watlow: Vos Solutions de Chauffage Brochure (FR)
Back to Tubular Heaters

Product Features

Three-phase capability
  • Results in one element versus three, lower amperage, reduced installation time and lower overall cost
Single-ended (Sensor not available with this package)
  •  Allows for mounting in a 1/2 inch NPT or 3/4 inch NPT fitting with three-phase capability
Multiple coil operations
  • Reduces inventory by allowing dual voltage capability
Versatile forming capabilities
  • Forms into many configurations
Internal construction with sensor
  • Allows space savings because drilling and tapping of flange is unnecessary; plus, the interior thermocouple eliminates contamination buildup around the external sensing tip, reducing the possibility of false readings

Product Specifications

Termination Styles:
Lead wires 392°F (200˚C) Sil-a-Blend® or 482°F (250°C) GGS.
Moisture Seals (Required):
  • Moisture seal options include:
  • Epoxy with temperature rating up to 356˚F (180°C).
  • Typical applications include water/oil immersion.
  • Lavacone with temperature rating up to 221°F (105°C).
  • Typical application includes air heating.
  • High-temperature ceramic rated up to 2800°F (1538°C).
  • Contact us for other moisture seal options.
Mounting options:
  • Mounting brackets
  • Locator washers
  • Mounting collars
  • Water-tight bulkheads
Maximum trim length:
  • 237 in. (6020 mm),
  • heater designs with trim length greater than 120 in. (3048 mm) must be reviewed by one of our representatives.
Sheath materials:
  • Alloy 600, 800, 840, 304 and 316 stainless steel,
  • contact us for other sheath material options.
Internal thermocouple options:
Type K is used. Contact us for Type J thermocouple options.

Resources

Applications

  • Process
  • Milled groove
  • Medical
  • Plating
  • Plastics
  • Oven heating
  • Semiconductor
  • Food service
