ZEL-C Series Temperature & Process Controller

ZEL-C Series
Zesta ZEL-C62
Zesta ZEL-C62
The ZEL-C Seris is the newest generation of low cost PID microprocessor-based controllers.  Equipped with Fuzzy logic / PID control, this controller incorporates two bright easy-to-read LCD displays, indicating Process Value (PV) and Set Point value (SP).

The Fuzzy Logic technology incorporated on this controller enables a process to reach a predetermined set point in the shortest time with minimum of overshoot during start up or external load disturbances.

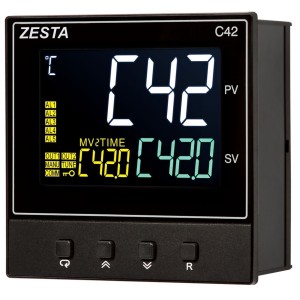

ZEL-C42 - (1/4 DIN Panel Mount)
ZEL-C82 - (1/8 DIN Vertical Panel Mount)
ZEL-C83 - (1/8 DIN Horizontal Panel Mount)
ZEL-C72 - (1/8 DIN Square Panel Mount)
ZEL-C62 - (1/16 DIN Panel Mount)
ZEL-C22 - (1/32 DIN Panel Mount)
ZEL-R22 - (DIN Rail Mount)
Back to Single Loop Controllers
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Product Features

  • High quality LCD Display
  • High Accuracy 18 Bit A-D Input and 15 Bit D-A Output
  • The Fast Sampling Rate in 200msec
  • True Universal Inputs of Thermocouple, RTD, mA, V
  • Fuzzy+ PID Control
  • Auto-Tuning
  • RS-485 Comms (optional)
  • Analog Retransmission (optional)
  • Profiling (optional), 2 Programs each with 8 Segments of Ramp & Soak
  • CT Inputs for Heater-Break Detection (optional)
  • Up to 2 Event Inputs (optional, ZEL-C22, C62, & R22)
  • Up to 6 Event Inputs (optional, ZEL-C82, C83, C72, & C42)
  • Remote Setpoint (optional)
  • Bumpless Transfer
  • Lockout Protection
  • Bidirectional Menu Navigation

Specifications

Power Supply:
  • 90 to 250 VAC, 47–63 Hz
  • 11 to 40 VDC / 20 to 28 VAC, 47– 63 Hz
Power Consumption:
  • C22/R22: 8VA, 4W maximum
  • C62: 10VA, 5W maximum
  • C72/C82/C83/C42: 12VA, 6W maximum
Signal Input:
  • Type: Thermocouple (J, K, T, E, B, R, S, N, L, U, P, C, D), RTD (PT100 (DIN), PT100 (JIS)), Current (mA), Voltage (Volts)
  • Resolution: 18 Bits
  • Sampling Rate: 5 Times / Second (200 ms)
  • Maximum Rating: -2 VDC minimum, 12 VDC maximum
  • Temperature Effect: 1.5 μV/°C for all inputs except mA input, 3.0 μV/°C for mA
  • Sensor Lead Resistance Effect: Thermocouple: 0.2 μV/Ω; 3-wire RTD: 2.6°C/Ω of Difference of Resistance of two leads; 2-wire RTD: 2.6°C/Ω of Sum of Resistance of two leads
  • Burn-out Current: 200 nA
  • Common Mode Rejection
  • Ratio (CMRR): 120 dB
  • Normal Mode Rejection Ratio (NMRR): 55 dB
  • Sensor Break Detection: Sensor open for Thermocouple and RTD inputs, sensor short for RTD input, below 1 mA for 4–20 mA input, below 0.25 VDC for 1–5 VDC input, not available for other inputs
  • Sensor Break Response Time: Within 4 seconds for Thermocouple and RTD inputs, 0.1 second for 4–20 mA and 1–5 VDC inputs
Remote Set Point Input:
  • Type: Linear Current, Linear Voltage
  • Range: -3 mA to 27 mA, -1.3 VDC to 11.5 VDC
  • Accuracy: ± 0.05 %
  • Remote Set Point Option: Available with ZEL-C82, C83, C72, C42. Not available with ZEL-C22, C62, R22
  • Input Impedance: Current 2.5 Ω, Voltage 1.5 MΩ
  • Resolution: 18 Bits
  • Sampling Rate: 1.66 Times / Second
  • Maximum Rating: 280 mA maximum for Current Input, 12 VDC maximum for Voltage Input
  • Temperature Effect: ±1.5 μV/°C for Voltage Input, ±3.0 μV/°C for Current Input
  • Sensor Break Detection: Below 1 mA for 4–20 mA input, below 0.25 VDC for 1–5 VDC input, not available for other inputs
  • Sensor Break Response: Time 0.1 Seconds
Event Input:
  • Number of available Event Inputs: ZEL-C22 (1); ZEL-C62 (2); ZEL-C82 (6); ZEL-C83 (6); ZEL-C72 (2); ZEL-C42 (6); ZEL-R22 (2)
  • Logic Low: -10 VDC minimum, 0.8 VDC maximum
  • Logic High: 2 VDC minimum, 10 VDC maximum
  • Function: Refer to user manual
CT Input:
  • CT Type: CT98-1
  • Accuracy: ± 5 % of Full Scale Reading, ± 1 digit maximum
  • Input Impedance: 294 Ω
  • Measurement Range: 0 to 50 A VAC
  • Output of CT: 0 to 5 VDC
  • CT Mounting: Screw Mounting
  • Sampling Rate: 1 Time / Second
Output 1 / Output 2:
  • Type: Relay, Pulsed Voltage, Linear Voltage and Linear Current
  • Relay Rating: 2A, 240 VAC, 200,000 Life Cycles for Resistive Load
  • Pulsed Voltage: Source Voltage 5 VDC, Current Limiting Resistance 66 Ω
  • Linear Output Resolution: 15 Bits
  • Linear Output Regulation: 0.02 % for full load change
  • Linear Output Settling Time: 0.1 Second (Stable to 99.9 %)
  • Isolation Breakdown Voltage: 1,000 VAC
  • Temperature Effect: ±0.01% of Span/°C
  • Load Capacity of Linear Output: Linear Current 500 Ω maximum, Linear Voltage 10 KΩ minimum
Alarm:
  • Relay: Type Form A
  • Maximum Rating: 2A, 240 VAC, 200,000 Life Cycles for Resistive Load
  • Alarm Function: Dwell Timer, Deviation Low, Deviation High, Deviation Band Low, Deviation Band High, Process High, Process Low, Range Low, Range High, Range High Low, Heater Break, Heater Short, Profile End, Profile Holdback
  • Alarm Mode: Latching, Holding, Normal, Latching / Holding, Set Point Holding
  • Dwell Timer: 0.1 to 4,553.6 Minutes
Data Communication:
  • Interface: RS-485
  • Protocol: Modbus RTU (Slave Mode)
  • Address: 1 to 247
  • Baud Rate: 2.8 KBPS to 115.2 KBPS
  • Parity Bit: None, Even or Odd
  • Stop Bit: 1 or 2 Bits
  • Data Length: 7 or 8 Bits
  • Communication Buffer: 160 Bytes
Analog Retransmission:
  • Output Signal: 4-20 mA, 0-20 mA, 0-10 VDC
  • Resolution: 15 Bits
  • Accuracy: ±0.05 % of Span ± 0.0025%/°C
  • Load Resistance: 0 to 500 Ω for Current Output, 10 KΩ minimum for Voltage Output
  • Output Regulation: 0.01 % for full load change
  • Output Setting Time: 0.1 Second (Stable to 99.9 %)
  • Isolation Breakdown: 1,000 VAC minimum
  • Integral Linearity Error: ±0.005 % of Span
  • Temperature Effect: ±0.0025 % of Span / °C
  • Saturation Low: 0mA or 0 VDC
  • Saturation High: 22.2mA or 5.55 VDC,11.1 VDC minimum
  • Linear Output Range: 0-22.2mA (0-20 mA / 4-20mA), 0-5.55 VDC (0-5 VDC / 1-5 VDC), 0-11.1 VDC (0-10VDC)
User Interface:
  • Keypad: 4 Keys
  • Display: Type 4 Digit LCD Display
  • Consult Datasheet for more details
Programming Port:
  • Interface: Micro USB
  • PC Communication Function: Parameter Configuration and Firmware Upgrade
Control Mode:
  • Output 1: Reverse (Heating) or Direct (Cooling) Action
  • Output 2: PID cooling control, Cooling P band 50 ~ 300 % of PB, Dead band -36.0 ~ 36.0 % of PB
  • ON-OFF: 0.1~50.0°C (0.1~90.0°F) hysteresis control (P band = 0)
  • P or PD: 0-100.0 % off set adjustment
  • PID: Fuzzy logic modified Proportional band 0.1~500.0°C (0.1~900.0°F), Integral time 0-3,600 Seconds, Derivative time 0-360.0 Seconds
  • Cycle Time: 0.1 to 90.0 Seconds
  • Manual Control: Heat (MV1) and Cool (MV2)
  • Auto-tuning: Cold Start and Warm Start
  • Failure Mode: Auto transfer to manual mode while sensor break or A-D Converter damage
  • Ramping Control: 0~500.0 (0~900.0 ) / Minute or 0~500.0 (0~900.0 ) / Hour Ramp Rate
Digital Filter:
  • Function: First Order
  • Time Constant: 0, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 Seconds Programmable
Profiler:
  • ZEL-C22: not available
  • ZEL-C62: not available
  • ZEL-C82: optional. No. of programs: 4/2/1. No. of segments/program: 4/8/16.
  • ZEL-C83: optional. No. of programs: 4/2/1. No. of segments/program: 4/8/16.
  • ZEL-C72: optional. No. of programs: 4/2/1. No. of segments/program: 4/8/16.
  • ZEL-C42: optional. No. of programs: 4/2/1. No. of segments/program: 4/8/16.
  • ZEL-R22: not available
Environmental and Physical Specifications:
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -40°C to 60°C
  • Humidity: 0 to 90 % RH (Non - Condensing)
  • Altitude: 2,000 Meters maximum
  • Pollution: Degree II
  • Insulation Resistance: 20 MΩ minimum (@ 500 VDC)
  • Dielectric Strength: 2,000 V AC, 50 / 60 Hz for 1 Minute
  • Vibration Resistance: 10 to 55 Hz, 10 m / s2 for 2 Hours
  • Shock Resistance: 200 m / s2 ( 20 g)
  • Molding: Flame Retardant Polycarbonate
  • Mounting: Panel Mount, except for ZEL-R22 which is DIN-Rail mount
  • DIN Size: ZEL-C22 (1/32); ZEL-C62 (1/16); ZEL-C82 (1/8 vertical); ZEL-C83 (1/8 horizontal); ZEL-C72 (1/8 square); ZEL-C42 (1/4); ZEL-R22 (n/a)
  • Dimensions (WxHxD)(mm): ZEL-C22 (48x24x92); ZEL-C62 (48x48x59); ZEL-C82 (48x96x59); ZEL-C83 (96x48x59); ZEL-C72 (72x72x59); ZEL-C42 (96x96x59); ZEL-R22 (22.5x96x83)
  • Depth Behind Panel (mm): ZEL-C22 (84mm); ZEL-C62 (50mm); ZEL-C82 (50mm); ZEL-C83 (50mm); ZEL-C72 (50mm); ZEL-C42 (50mm); ZEL-R22 (-)
  • Cut Out Dimensions (mm): ZEL-C22 (45x22.2); ZEL-C62 (45x45); ZEL-C82 (45x92); ZEL-C83 (92x45); ZEL-C72 (68x68); ZEL-C42 (92x92); ZEL-R22 (-)
  • Weight (grams): ZEL-C22 (120g); ZEL-C62 (160g); ZEL-C82 (220g); ZEL-C83 (220g); ZEL-C72 (190g); ZEL-C42 (290g); ZEL-R22 (160g)
Approval Standards:
  • Safety: UL61010-1, CSA 22.2 No.61010-1-12, EN61010-1 (IEC1010-1), RoHS, REACH
  • Protective Class: IP50 for panel, IP20 for terminals and housing, all indoor use
  • EMC: EN61326

Resources

Applications

Plastic/rubber industry
Electric heating furnace industry
Semiconductor industry
Ceramic / kiln / glass industry
Fiber machinery
