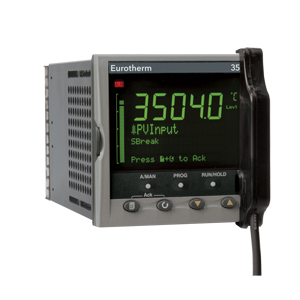

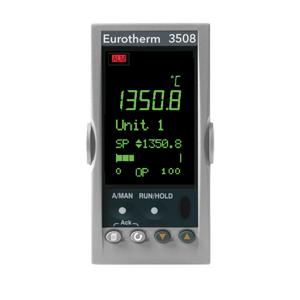

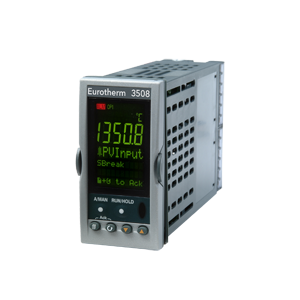

3500 Advanced Temperature Controller and Programmer

3504, 3508 – Precision control of temperature and process variables

The latest range of advanced process controllers from Eurotherm provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class.

Back to Multi Loop Controllers

Product Features

The emphasis is on flexibility yet the 3500 controllers still maintain ease of use. A simple ‘Quick Start’ process is used to configure all the basic functions essential to controlling your process. This includes input sensor type, measurement range, control options and alarms making ‘Out the Box’ operation truly achievable. More advanced features are configured using a PC based graphical configuration tool enabling users to pick function blocks from a library then connect them together using soft wiring.

Ideal for automation applications:

  • Heat Treatment
  • Semi-conductors
  • Environmental chambers
  • Autoclaves
  • Reactors and Fermenters
  • Melt pressure
  • Process applications

PID Controller features:

  • 2 PID loops
  • 50 Programs
  • Precision PV input
  • Carbon potential
  • Maths/logic/timers
  • Custom user interface
  • Recipes
  • Modbus RTU
  • Ethernet Modbus TCP
  • Profibus DP
  • DeviceNet network

Related Terms: 3000 Series

Product Specifications

Input Type:
mA, mV, RTD, TC, Volts
PV Accuracy:
<0.1%
IP Rating:
IP65, NEMA12
Display Type:
4 line alphanumeric, Main PV: 5 digit plus
Control Types:
On/Off, PID, VP
Alarm Types:
Dev, Event, Heater fail, Hi, Lo, Sensor Break
Supply Voltage:
24V dc/ac, 85-264V ac
SP Programmer:
50 Programmes, 500 Segments max
Real Time Clock:
Day and Time
Safety-approvals:
None
Special Features:
User wiring, Master comms
Analogue IP/OP In:
5
Analogue IP/OP Out:
6
Digital IP/OP In:
40
Digital IP/OP Out:
41
Digital Comms:
Modbus Master, DeviceNet, Ethernet, Modbus, Profibus
Maths Equation:
24 Calculations
Combinational Logic:
24 Operations
Timers/Counters/Totals:
4 / 2 / 2
PC Configuration:
Graphical wiring
