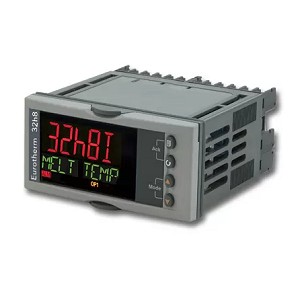

3200i Indicator and alarm unit

3204i, 32h8i, 3216i
3200i Indicator and alarm unit

3204i, 32h8i, 3216i – Accurate indication of temperature and process measurements

The Eurotherm range of 3200i indicators offer accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.

The emphasis is on ease of use. A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process.

Back to Indicator and Alarm Units
Customize this product Buy now
Features
Specifications
Ordering information
Resources
Applications

Product Features

Ideal for:

  • Temperature & process indication
  • Level/pressure/flow
  • Process protection
  • Heat treatment – furnace over temperature
  • Plastics – extrusion melt pressure
  • Weighing platform

Product Specifications

Input Type:
Custom, mA, mV, RTD, TC
Panel size (DIN):
1/16, 1/4, 1/8
IP Rating:
IP65, NEMA 12 / NEMA 4X (3216 Only)
Control Types:
3216i, 3204i: 4 Digit LCD plus 5 character alphanumeric, 32h8i: 5 Digit LCD plus 9 character alphanumeric
Alarm Types:
Dev, Event, Hi, Lo, Rate, Sensor Break
Supply Voltage:
100-264V ac, 24V dc/ac
Transmitter Power Supply:
24V dc, None
No of Alarms:
3
Safety-approvals:
EN14597/TW, Factory Mutual (FM) approved
PC Configuration:
Graphical wiring
Transducer Power Supply:
10V dc, None
User Calibration:
5 point, Auto Tare, Load Cell, Shunt
No of Relay Outputs:
3216i: 3 32h8i, 3204i: 2
Digital IP/Logic OP:
2/0
Retransmission:
3216i: Non isolated 32h8i, 3204i: Isolated
Custom Messages:
128 Characters
Slave Comms:
Modbus RTU
Melt Pressure:
3216i, 3204i: No 32h8i: Yes
PV Input Selection:
None

Resources

Literature

Eurotherm 3200i Datasheet
