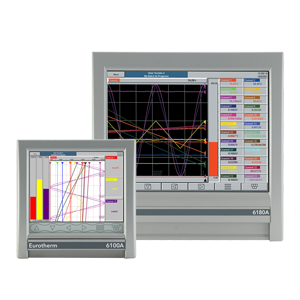

6000XIO Distributed Graphic Recorders
Each 6000XIO instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats.  All have onboard Flash data storage capability, Ethernet communications and Compact Flash cards for data archiving.
Back to Data Recorders

Product Features

Description

12.1″ XGA and 5.5″ ¼VGA display options Remote visualization and configuration 32Mbyte onboard Flash data storage Modbus Master Batch functionality 16-bit color, touch screen displays Custom graphic displays

Data is stored in a tamper-resistant binary format that can be used for secure, long term records of your process.  The 6000XIO is truly designed for today’s networked world and can be accessed via a Local Area Network, dial-up connection, intranet or Internet.

Data logging and archiving

The 6000XIO recorders have internal Flash memory for secure data storage.  They are also able to accept various removable media types (Compact Flash or USB Memory Stick). Data stored within the internal memory can be archived to the removable media on demand or at preset intervals.  The 6000XIO will give indication of how long its internal memory and that of the removable media installed will last according to the configuration of the recorder.

All 6000XIOs have Ethernet communications.  They can be configured to archive to the removable media and / or over Ethernet.  Archiving files over Ethernet effectively gives a secure, infinite archiving capacity.

Ideal for:

  • Remote monitoring applications
  • Water/waste water solutions
  • Utility distribution
  • Power generation
  • 21 CFR Part 11 applications
  • AMS2750F/Nadcap applications

Features:

  • Modbus master
  • Ethernet TCP/IP
  • Serial comms
  • Up to 176 comms channels
  • Batch functionality
  • Audit trail
  • Individual user accounts
  • Software password protection
  • USB ‘plug & play’
  • Web server
  • 4 alarms per channel
  • 24 custom displays
  • Up to 32 Modbus slaves

Product Specifications

Timer:
Yes
PC Configuration:
Yes
Batch Management:
Yes
Auditor Features:
Yes
Network Addressing:
Boot P, DHCP, Fixed IP
Graphic Display:
6100XIO: 5.5″ / 6180XIO: 12.1″
Protection:
IP66
Relay Outputs:
No
Annotation:
Yes
Contact Inputs:
No
Communications:
EtherNet/IP Server, Modbus TCP/RTU Master & Slave
Mathematics:
Yes
Counters:
Yes
Totalisers:
Yes
Ethernet/FTP:
Yes
Custom Screens:
Yes
Remote Viewing:
Yes
Recording Speed:
8Hz
Trend Speed:
8Hz
USB:
1
Reports:
10
Groups:
12
Review of History (on screen):
Yes
AMS2750F:
Yes
Inputs:
None
